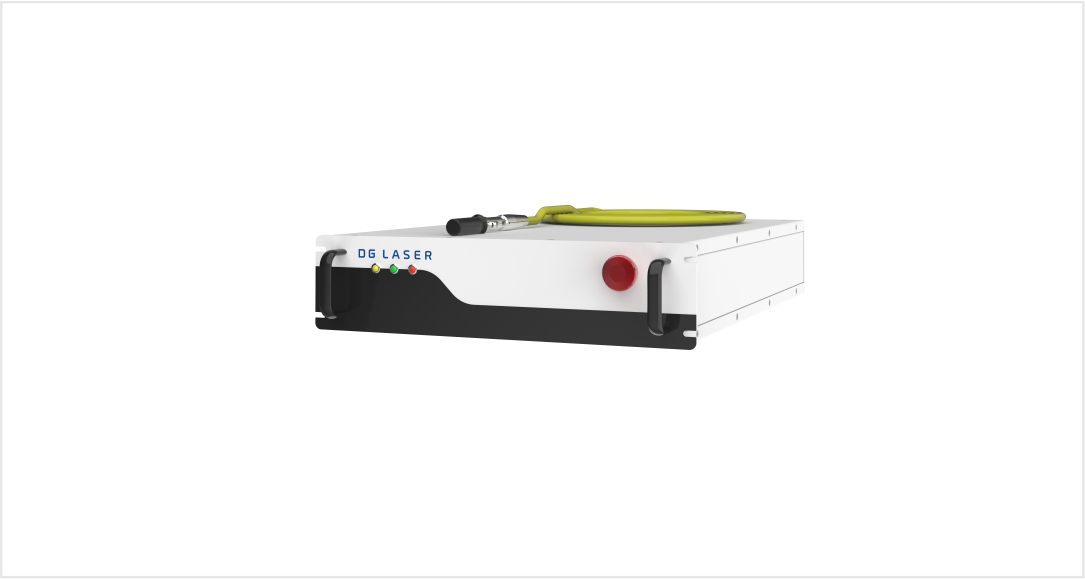

4000W單模連續光纖激光器Single Mode CW Fiber Lasers

光束質量 M2可小于1.5,BPP可小于0.51mm·mrad,實現更高的加工效率和質量。

Beam quality M2 less than 1.5 is offered and BPP less than 0.51mm·mradis offered. High processing efficiency is obtained with high quality.

具備高抗返回光能力,滿足有色金屬加工等高反光場合的應用需求。

With strong anti-re?ection capacity, our laser products can be stably applied in non-ferrous metal  processing.

采用976nm泵浦技術,具有高電光轉換效率,有效降低用電成本。

High electro-optical conversion e?ciency is o?ered via 976nm pump technology. The power  consumption is reduced.

采用高可靠產品設計理念,通過高標準嚴苛環境試驗(高低溫、振動、濕熱等)考核。

The product passes several environment tests (temperature cycling test, vibration test, damp heat test, etc.)


咨詢產品信息

典型參數表

specifications

DGSM 4000W

輸出功率(W)

Output Power(W)

≥4000

中心波長

Central Wavelength(nm)

1068-1082

運行模式

 Opration Mode

連續/調制CW/Modulate

光束質量 M2

Beam Quality M2

≤1.5(典型值)(Typicail)

輸出芯徑(μm)

Output Fiber Diameter(μm)

25(典型值)(Typicail)

鎧裝長度

Delivery?Cable Length(m)

5(典型值)(Typicail)

功率調節范圍(%)

Power Range(%)

10~100

功率穩定性(%)

Power Stability(%)

±1.5

最大調制頻率(Hz)

Max.Modulation Frequency(Hz)

5000

偏振態

Polarization State

隨機Random

光學接口

Optical Interface

QBH

紅光

 Red Laser

有  YES

控制模式

Control Mode

RS232/AD/Ethernet

電源輸入

Power Supply

AC340V~420V 50/60Hz

能耗(kW)

Power Consumption(kW)

12

制冷方式

Cooling

水冷,水溫(24±1)℃

Water Cooling, (24±1)℃

流量要求(L/min)

 Water Flow (L/min)

≥40

尺寸

Dimensions(mm)

1104×483×220

重量

Weight(kg)

113


注:指標需求可定制。

Parameters are customizable.
