光束質量 M2可小于7,BPP可小于2.4mm·mrad,實現更高的加工效率和質量。
Beam quality M2 less than 7 is offered and BPP less than 2.4mm·mradis offered. High processing efficiency is obtained with high quality.
具備高抗返回光能力,滿足有色金屬加工等高反光場合的應用需求。
With strong anti-re?ection capacity, our laser products can be stably applied in non-ferrous metal processing.
采用976nm泵浦技術,具有高電光轉換效率,有效降低用電成本。
High electro-optical conversion e?ciency is o?ered via 976nm pump technology. The power consumption is reduced.
采用高可靠產品設計理念,通過高標準嚴苛環境試驗(高低溫、振動、濕熱等)考核。
The product passes several environment tests (temperature cycling test, vibration test, damp heat test, etc.)

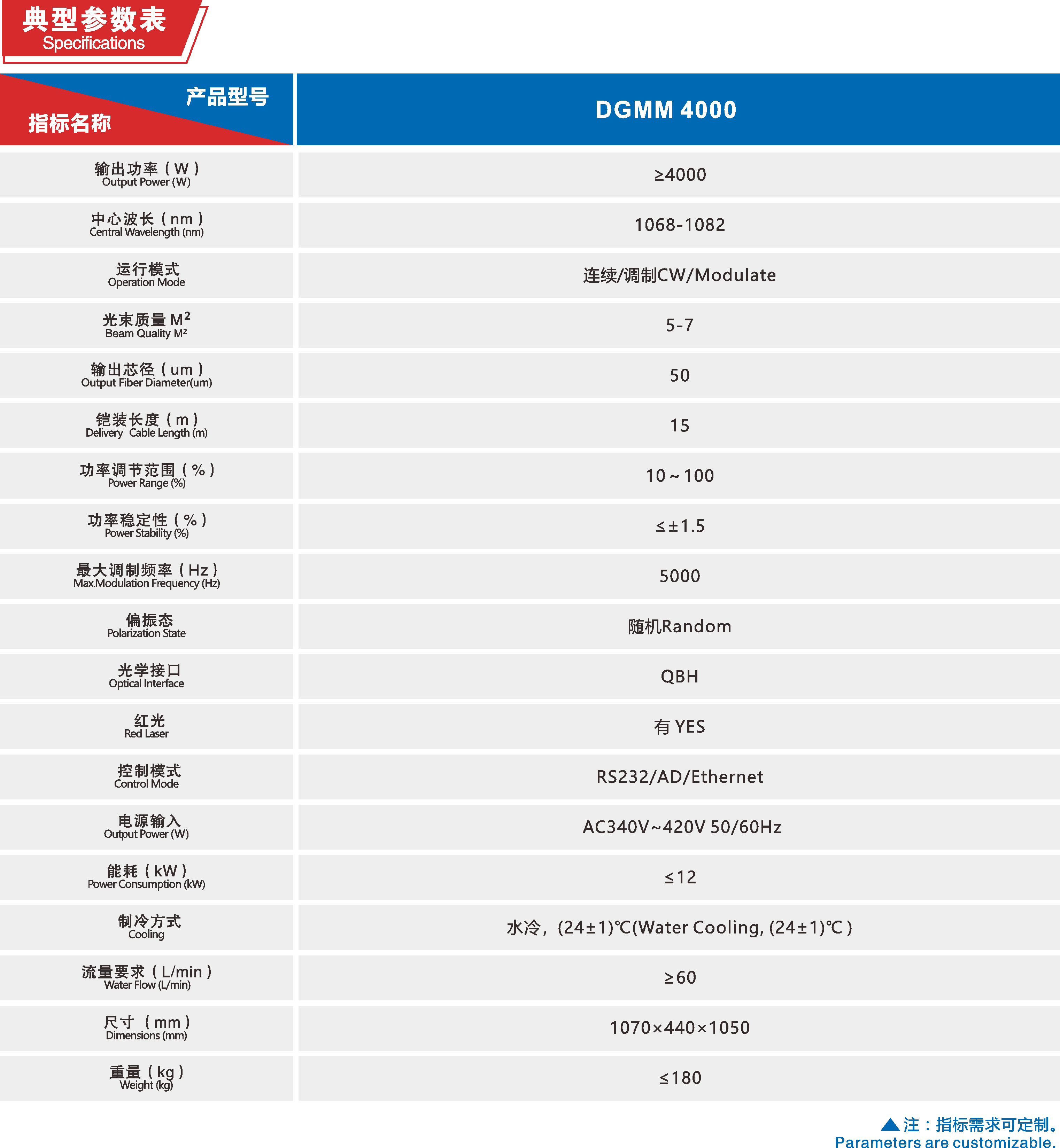

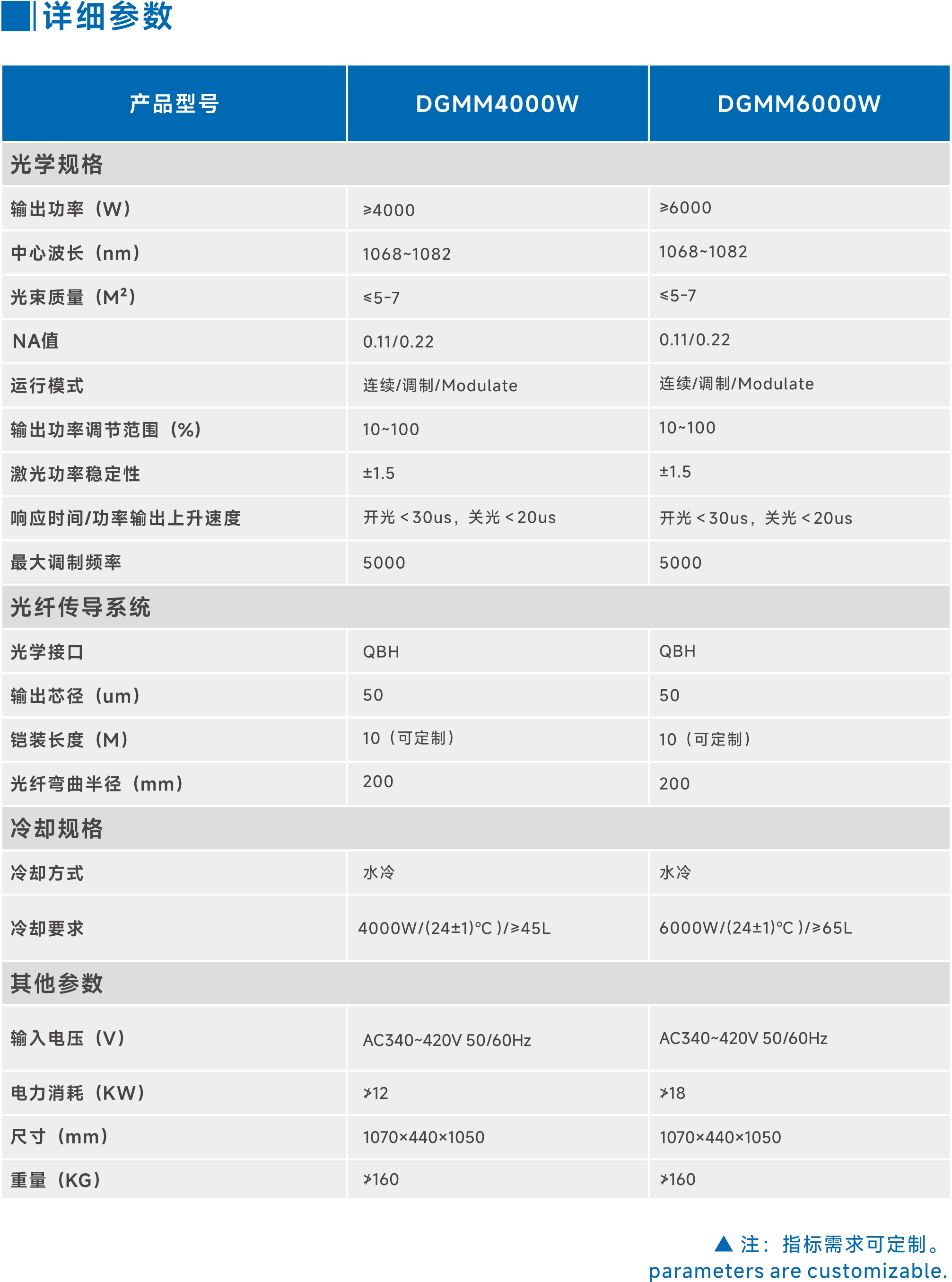

典型參數表 specifications | DGMM 4000 | |||
輸出功率(W) Output Power(W) | ≥4000 | |||
中心波長(nm) Central Wavelength(nm) | 1068-1082 | |||
運行模式 Opration Mode | 連續/調制CW/Modulate | |||
光束質量 M2 Beam Quality M2 | 5-7(典型值)(Typicail) | |||
輸出芯徑(μm) Output Fiber Diameter(μm) | 50(典型值)(Typicail) | |||
鎧裝長度 Delivery?Cable Length(m) | 15(典型值)(Typicail) | |||
功率調節范圍(%) Power Range(%) | 10~100 | |||
功率穩定性(%) Power Stability(%) | ≤±1 | |||
最大調制頻率(Hz) Max.Modulation Frequency(Hz) | 5000 | |||
偏振態 Polarization State | 隨機Random | |||
光學接口 Optical Interface | QBH | |||
紅光 Red Laser | 有 YES | |||
控制模式 Control Mode | RS232/AD/Ethernet | |||
電源輸入 Power Supply | AC340V~420V 50/60Hz | |||
能耗(kW) Power Consumption(kW) | ≤12 | |||
制冷方式 Cooling | 水冷,水溫(24±1)℃ Water Cooling, (24±1)℃ | |||
流量要求(L/min) Water Flow (L/min) | ≥60 | |||
尺寸 Dimensions(mm) | 1070×440×1050 | |||
重量 Weight(kg) | ≤180 |
注:指標需求可定制。
Parameters are customizable.
